Features
- Convenient local display
- Small size
- Low power consumption
- 3-1/2 digit LCD display
- Designed to be installed in-line
- Pressure displayed in desired engineering units
- Available for voltage or current input devices
- Easily mounted with integral connectors
- Low cost
- Available in panel mount version
- Meets CE conformance standards

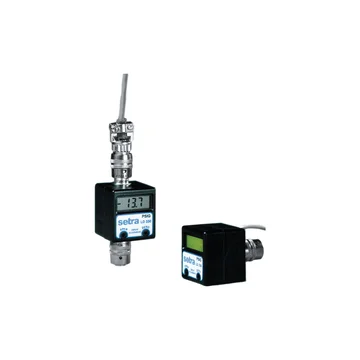

The Setra LD 330 Local Display is designed to be easily installed in-line
between a Setra pressure transducer and the user's data acquisition system and
power supply. It has a low power consumption 3-1/2 digit analog to digital converter with
a Liquid Crystal Display (LCD). The compact housing allows transducer and power supply
connection through a variety of electrical terminations.
The LD 330 is factory calibrated to read the specifi ed range in engineering
units. Zero and Span display adjustments are made through multi-turn potentiometers
conveniently located on the front face. The LD 330 is lightweight and easily mounted
using back or bottom mount integral connectors. With the Bayonet or Mini-Din connector,
the housing rotates up to 280 degrees for optimum display viewing.
