Features
- 0 to 14 pH measuring range
- Chemically resistant KYNAR
- Rugged, quick change, quick clean
- Max temp: 266°F/130°C at 40 psig/276 KPa
- Max pressure: : 150 psig/1035 KPa at 158°F/70°C
- Model RBI-546:
- 3/4in MPT threaded nose
- Submerged; 3/4in MNPT threaded top
- Model RBI-547:
- 1in MPT process fitting or, 1¼ and 1½in ball valve assemblies
- 1in MNPT process fitting, into 1in FNPT coupling or ¾in submersion extension pipe

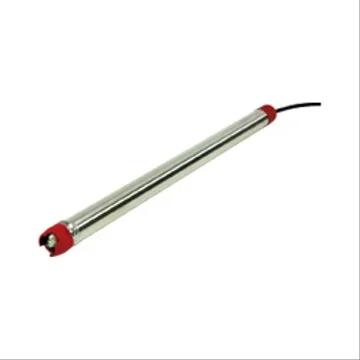

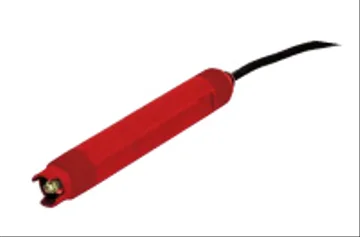

The Rosemount Analytical RBI pH Sensor is designed for extended sensor life when used in applications with sulfides which are typically found in scrubbers. The Model RB is made with chemically resistant KYNAR. Optional installation methods allows standardization of entire plant with a minimum of sensor part numbers.
They're built with a Kynar body and is designed in two configurations. The 546 sensor is housed in a fully encapsulated body for use in pipe tees or submersed in a tank. The 547 is the ball valve retractable version; the sensor body can be replaced and the titanium sensor sheath assembly (sold separately) can be reused. Both sensor types are built with a high performance J glass, notched tip with a Teflon junction, and a PT100 RTD. The integral cable is prepared with tinned leads for easy wiring.
