Features
- Compact, lightweight, all-welded stainless steel design
- ±0.25% of calibrated span reference accuracy
- 3-year stability guarantee reduces maintenance costs
- Over pressure limits:
- Range 2: 1,500 psi (103.4 bar)
- Range 4: 7,500 psi (517.1 bar)
- Range 5: 15,000 psi (1034 bar)
- Range 6: 24,000 psi (1655 bar)
- Burst pressure limits:
- Range 5: 26,016 psi (1,793.74 bar)
- Range 6: 46,092 psi (3,177.93 bar)
- Silicone sensor module fill fluid
- Up to 40:1 rangeability
- 4-20 mA HART Rev 7 capabilities
- Leading edge capacitance sensor with integral temp measurement
- Temperature limits:
- Ambient: -40 to 185°F (-40 to 85°C)
- Process: -40 to 250°F (-40 to 121°C)
- <1 nanosecond response time

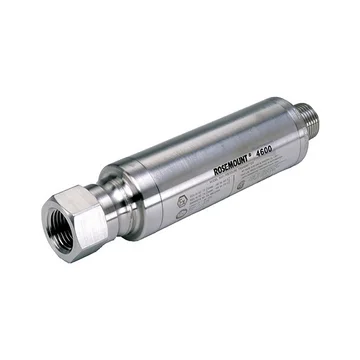

The Rosemount 4600 oil and gas panel transmitter is ideal for panel mount applications and is capable of measuring high pressure ratings of up to 20000 psi (1379 bar). The 4600 offers a rangedown of up to 40:1 for increased flexibility. It also features a compact, lightweight design with an all-welded, stainless steel construction, providing a stable and robust solution that withstands harsh environments.
The 4600 weighs less than 2.1 pounds, and the all-welded, hermetic enclosure maximizes reliability by minimizing environmental effects, such as salt spray and humidity, on the electronics and sensor. The stability and compact, robust design of the 4600 make it ideal for oil and gas panel applications.
