Features
- Accuracy: 0.36°F (0.20°C) or 0.1% of span
- Input 2, 3, 4 wire RTDs, thermocouple, millivolt, ohm
- Operating temp: -40 to 185°F (-40 to 85°C)
- Input/output isolation tested to 500 Vac rms
- DIN B style head mount or rail mount
- Less than 0.5 seconds update time
- 32 seconds maximum. 5 seconds default damping
- Custom Alarm and Saturation Levels
- HART/4-20 mA Communication Protocol

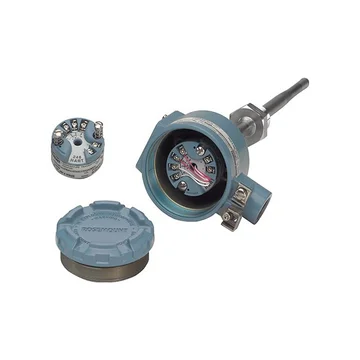

The Rosemount 248H temperature transmitter is designed to meet common Single Point measurement application requirements. This transmitter with HART® protocol can easily be ordered with a variety of sensors (RTDs and thermocouples) and thermowells. The Rosemount 248H is provided in a head mount configuration suitable for installation in a wide variety of connection heads and housings. A PC-programmable interface is available, providing an easy-to-use configuration method from any PC.
Basic temperature transmitter offers a reliable solution for temperature monitoring points
Standard transmitter design provides flexible and reliable performance in process environments
Experience lower over-all installation costs when compared to wiring sensor directly, reducing the need for expensive extension wires and multiplexers
Explore the benefits of a Complete Point Solution from Rosemount Temperature
