Features
- Simultaneous readout on 4 channels
- Accepts any 4-20mA transmitter
- 115 / 220 VAC or 24 VDC operation
- 3 programmable alarm levels per channel
- Audible alarm with silence feature
- Option for red strobe light
- 2 configurable relays per channel
- Weather & corrosion resistant NEMA 4X enclosure
- CSA & C/US approved

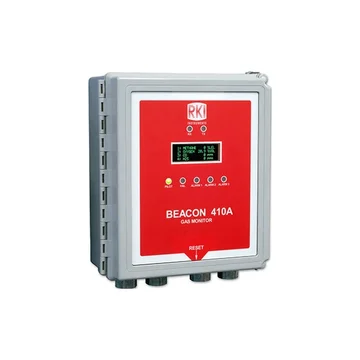

The RKI Instruments Beacon 410A gas controller allows users to simultaneously control up to four gas monitoring channels while displaying the gas type, readings and status of each channel. With the ability to monitor and control any combination of direct connect sensors (LEL, O2, CO2 and toxic gases), this RKI Instruments gas controller can also accept and monitor any 4-20mA transmitter (2- or 3-wire).
Three programmable alarm levels per channel and three alarm relays per channel give the RKI Instruments Beacon 401A gas controller added customization. Each channel also provides a 4-20mA output signal and a digital Modbus interface gives the 401A remote data logging capabilities via a Modbus network. A fully configurable strobe is available as an option. The min-max feature retains high and low peak readings for review at any time.
This RKI Instruments gas controller can be powered from 115/220 VAC, or an external 24 VDC source. A trickle charging battery backup feature with battery assembly is also available as an option. All features and functions of the Beacon 410A are controlled by easy-to-use menus on the OLED display. Additionally, all features including form-C relay contacts of the are built into the unit eliminating the need for add-on components or accessories.
