Features
- Six-digit, 1 in (26.4 mm) LCD screen
- Membrane keypad for remote control
- User-definable function keys
- Universal 115/230 VAC, 50/60 Hz battery charger
- Communicates with RF 3460, 4260, 7300, 7000 & 7001

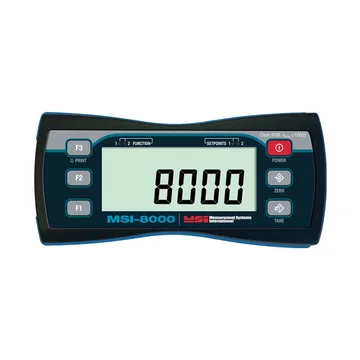

The Rice Lake MSI-8000 remote display uses wireless control to operate weighing systems from a distance. The wireless remote display can be used for viewing MSI
ScaleCore-based crane scales and dynamometers, including any RF compatible MSI-3460 Challenger 3 or MSI-7300 Dyna-Link 2 tension dynamometer. Both devices are
compact and carry an RF effective range of 300 feet (line of sight) and operate on a license-free 2.4 GHz frequency. With user-friendly keypads, standard function
keys for both devices include: On/Off, Zero, Tare and Print. In addition, two user-defined keys are included for peak hold, high resolution, total, view total,
net/gross, and units switching. Three selectable setpoints come standard in both models, with two of the selectable setpoints utilizing the programmable user-defined keys.
The MSI-8000 features a heavy-duty NEMA 4/IP65 enclosure, a large, six-digit, one-inch LCD display, and a user-friendly keypad for simple configuration and operation.
Just one MSI-8000 communicates wirelessly with up to four compatible MSI devices and an integrated RS-232 data port allows the MSI-8000 to easily interface with
peripheral devices such as printers, PCs and scoreboards. Power to the MSI-8000 is supplied by an internal rechargeable lithium polymer battery, which provides up
to 24 hours of continuous use between charging.
