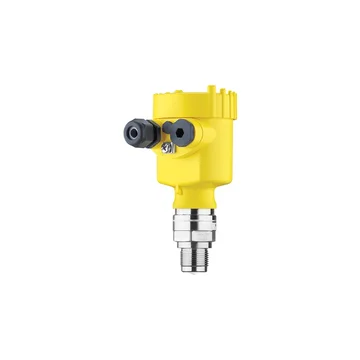

The VEGAPULS 64 is a sensor for continuous level measurement of liquids. With small tanks or in case of narrow space the small process fittings offer special advantages. The very good signal focusing enables the use in vessels with many installations such as e.g. stirrers and heating spirals. Benefits Exact measuring results independent of process conditions High plant availability, because wear and maintenance-free Maintenance-free operation through non-contact measuring principle Technical Specifications Measuring range - Distance 30 m [Meter - Foot] Process temperature -196 ... 200 °C [°C - °F] Process pressure -1 ... 25 bar [Bar - kPa - psi] Accuracy ± 1 mm Frequency 80 GHz Beam angle = 3° Version With plastic horn antenna ø 80 mm Thread with integrated horn antenna Flange with encapsulated antenna system Hygienic fitting with encapsulated antenna system Materials, wetted parts PFA PTFE 316L Alloy C22 (2.4602) PEEK Threaded connection = G¾, = ¾ NPT Flange connection = DN50, = 2" Hygenic fittings Clamp = 2", DN50 - DIN32676, ISO2852 Slotted nut = 2", DN50 - DIN 11851 DRD connection ø 65 mm for NEUMO BioControl D50 PN16 / 316L Seal material EPDM FKM FFKM Housing material Plastic Aluminium Stainless steel (precision casting) Stainless steel (electropolished) Protection rating IP66/IP68 (0,2 bar) IP66/IP67 IP66/IP68 (1 bar) Output 4 … 20 mA/HART - two-wire Ambient temperature -40 ... 80 °C
