Features
- 40 inH2O to 1,160 psig adjustable pressure ranges
- ±0.2% of adjusted span accuracy
- 4:1 turn down
- <150 ms response time
- -4 to 212°F (-20° to 100°C) temperature range
293°F (145°C) for 45 min - All stainless steel housing and wetted parts
- 12 to 36Vdc power requirement, unregulated
- IP66 rating
- 3-year warranty

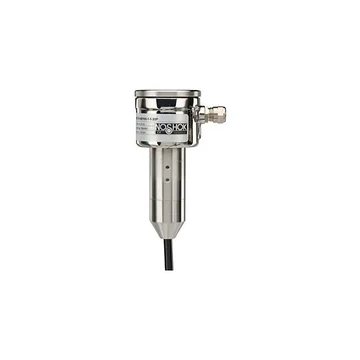

The NOSHOK 302 Series sanitary pressure transmitter is designed specifically for heavy-duty applications
where high accuracy, shock resistance and durability are required, including wash down applications and
where space restricts easy adjustment. The transmitter features pressure and temperature sensors mounted directly behind the diaphragm,
which minimizes fill fluid, allows the use of a smaller diaphragm, and reduces the potential for damage.
This provides active temperature compensation at the point of measurement to minimize temperature and position error.
Diaphragms are laser-welded and helium leak-tested.
The 302 Series transmitter features range adjustment via zero/span potentiometers in remote-mounted, all stainless steel housing.
It requires no reference pressure for range adjustment, and linearization can be made for various tank shapes.
The transmitter can be cleaned-in-place (CIP) or steamed-in-place (SIP), and is 3A approved. The transmitter's
compact and robust stainless steel housing is ideal for hygienic applications and harsh, aggressive ambient conditions.
NOSHOK 302 Series Sanitary Pressure Transmitter Applications
Tank level measurement
Food and beverage
Dairy
Breweries
Chemical processing
Pharmaceutical
