Description / توضیحات
Ordering Information

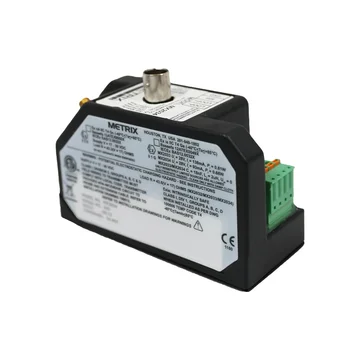

Model MX2034 DPS 4-20 mA Transmitter
Material Calibration(1)(2) 01 AISI-SAE 4140 CrMo Steel(1)
Probe Type 01 5mm & 8mm – Metrix MX2030/BN 3300/BN3300XL
System Length 05 5 meter(3)(4)
Approvals 00 None
Measurements 01 Vibration - 2 wire
Full Scale Range(5) 024 Field housing aluminium, IP 65
Pulses / Revolution 00 N/A (for vibration or position)
AISI-SAE 4140 chromium molybdenum steel is the standard default calibration per API Standard 670. If no material type is specified at time of ordering, a factory-standard AISI 4140 target will be used. Calibration to target materials other than 4140 may restrict linear range and other specifications; consult the factory.
Calibration to other material types is available upon request. Metrix will normally request that the customer supply a suitable sample of the material, allowing production of a machined target with appropriate surface finish.
Compatible with 7200, 3300, 3300XL, NSv, MX2030 and MX8030 probes only.
Can be used with the MX8030 Tight View Probe System.
Refer to Table 1 on following page for probe (BB), measurement (EE), and full scale range (FFF) compatibility details.
