Features
- 5 digit alphanumeric LCD display
- Range: 5 to 99,999 RPM
- Accuracy: ±0.01% or ±1 Digit
- Resolution: Autoranging: 0.001 to 1.0 RPM
- Operating Range: 2 inches to 36 inches, ±30°
- Memory: Maximum, Minimum and Last
- Power: (2) "AA" 1.5 VDC batteries (20 hours)
- Environmental: 5° to 40°C (0° to 100°F)
- Dimensions: 6.92 "H x 2.4"W x 1.6"D
- Standards: IEC1010-1

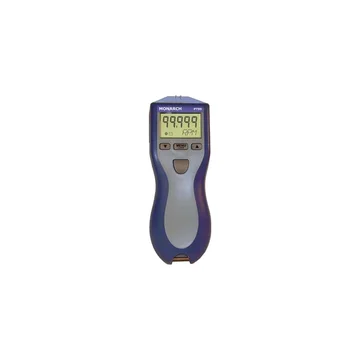

The Monarch Pocket Tach 99 tachometer is a portable, non-contact, optical tachometer, which operates from between 2 to 36 inches (±30°) from a reflective tape target using an LED light source.
The Pocket Tach 99 tachometer features a 5-digit alphanumeric LCD display. The range for the Monarch Instrument Pocket Tach 99 tachometer is 5 to 99,999 RPM with an accuracy of ±0.01%. Resolution is autoranging from 0.001 to 1.0 RPM.
The ergonomic design of this tachometer allows safe, direct line-of-sight viewing of both the rotating target and the display at the same time, while providing a no-slip rubber surface for single hand operation. It combines advanced features with value which makes it a great instrument for a wide variety of applications.
Applications for the Monarch Pocket Tach 99 Tachometer
Centrifuges
Couplings
Pumps
Grinders
Engines
Fans
P.T.O.
Gear Boxes
Motors
Pulleys
Shafts
Compressors
