Features
- Coriolis transmitter with multiple measurement options
- Mass, volume, & gas standard volume flow rates
- As well as density, temperature & drive gain
- Integral mount with 360° rotation or select a field mount option
- Petroleum measurement software version is optional
- Available with Smart Meter Verification
- Check performance & integrity without stopping flow
- 18 to 100 VDC & 85 to 265 VAC self switching power
- Class I, Division 1, Zone 1 local operator interface

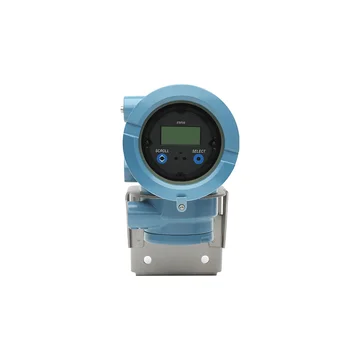

The Micro Motion 2700 multiple variable flow transmitter is powered by MVD Technology and designed for compact integral mounting, or to easily mount on a wall or pipe stand. It simultaneously outputs multiple variables, including: mass flow rate, volume flow rate, gas standard volume flow rate, density, temperature, and drive gain in selected combinations of outputs including milliamp, frequency, and discrete I/O using HART, Modbus, FOUNDATION fieldbus, or PROFIBUS-PA digital communications. These transmitters feature a rugged Class I, Division 1 / Zone 1 housing with an optional local operator interface designed to make flow meter access easy. Flow meter commissioning is simple and straight-forward with virtually no special programming requirements. MVD technology is high-speed signal processing that is embedded in electronics to deliver accuracy under the toughest conditions: entrained gas, high noise, high turndown and more. The front-end digital processing dramatically reduces signal noise and gives you faster response time to identify and resolve problems easily with built-in diagnostics. Select the petroleum measurement version for additional calculations with the standard software: Calculates base density (corrected API Gravity) & the correction for the effect of temp on a liquid Calculates gross volume at standard temperature Calculates flow-weighted average temperature & observed gravity (flowing density)
