Endress+Hauser Promag 5WBB1H-AADAMBJA0DUA12GAA1
Endress+Hauser Promag 5WBB1H-AADAMBJA0DUA12GAA1

Magnetic-inductive flow meter | Endress+Hauser | Promag 5WBB1H-AADAMBJA0DUA12GAA1

برند :

Endress+Hauser

پارت نامبر :

Promag 5WBB1H-AADAMBJA0DUA12GAA1

شماره انبار :

ST-60684

زمان تحویل:

10 هفته

قیمت حدودی:

392,040,000 تومان

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، قیمت‌ها حدودی بوده. لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

تامین کننده


یاران صنعت فجر

یاران صنعت فجر

ارسال به سراسر کشور

ضمانت اصالت و سلامت فیزیکی کالا

در مورد این محصول

ویژگی ها / Specifications


mediumconductive liquid
display2.40" LCD
diameter 4"
interfaceBluetooth
electrodes1.4435/316L bullet nose
cable entry1/2" NPT
power supply100-240VAC/24VDC
analog outputs1 (4-20mA/HART)
liner materialpolyurethane
digital outputs1 (pulse/frequency/switch output)
measurement range40-1250 gpm
protection ratingIP66/IP67
process connectionlap joint flange CL.150 ASME B16.5
measurement accuracy± 0.5 %
process pressure rangemax. 16 bar
process temperature range32-140 °F (0–60 °C)

Description / توضیحات

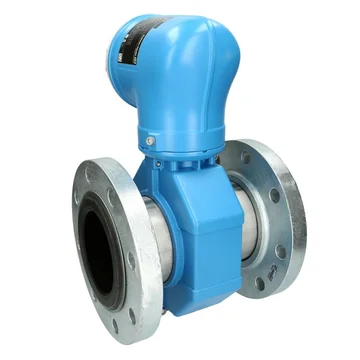

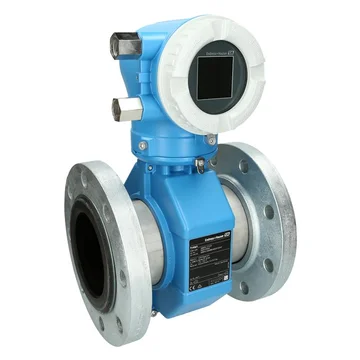

Magnetic-inductive flow meter Endress+Hauser Promag 5WBB1H-AADAMBJA0DUA12GAA1

The Proline Promag 5WBB1H-AADAMBJA0DUA12GAA1 from Endress+Hauser is a magnetic-inductive flow meter

for use in a wide variety of applications, particularly in the water and sewage industry.

The Promag W 10 with modern transmitter design with Bluetooth interface is the successor of Promag 10W.

It has a measurement range of 40 to 1250 GPM has a lap joint flange process connection.

It works up to a pressure range of 16 bar and with a measurement accuracy of ± 0.5 %.

The 4" diameter ANSI B16.5 process connection and the 1/2" NPT cable gland and the flexible key programming allow the magnetic-inductive

flow meter 5WBB1H-AADAMBJA0DUA12GAA1 to be adapted to different conditions.
