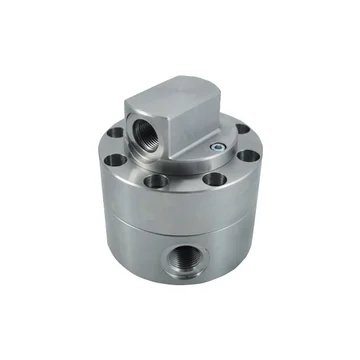

Macnaught M Series Positive Displacement Flow Meter

Features

• Stainless steel meter body
• Flow ranges:
  • 0.13 to 26 GPH
  • 4 to 132 GPH
  • 0.5 to 8 GPM
• ±0.5% accuracy
• Operating temp range: -40 to 248°F (-40 to 120°C)
• FFKM or PTFE seals
• 1/4in and 1/2in connection sizes

The Macnaught HP Series Positive Displacement Flow Meter is designed for heavy duty industrial flow measurement applications. The Macnaught HP meters provide 0.5% accuracy of actual reading and 0.03% repeatability all in a compact footprint. No flow conditioning required. There are two sizes available including the 1/4in (8000 psi rated) and 1/2in (3000 psi rated). Three flow rates are also available including 0.13 to 26 GPH, 4 to 132 GPH and 0.5 to 8 GPM. Applications for the HP Series: Polyol and isocyanate ratio measurement OEM equipment Additive injection Hydraulic test stands Fuels / oils / solvents / resins
