Features
- 4-20 mA universal loop-powered
- NEMA 4X enclosure display
- Alarm output
- 4 digit LED display
- Peak values detection
- No extra power supplied required
- 0.1% accuracy
- Operating temp: -4 to 122°F (-20 to 50°C)
- Polycarbonate wall mount case
- Gland M16x1.5 standard connection

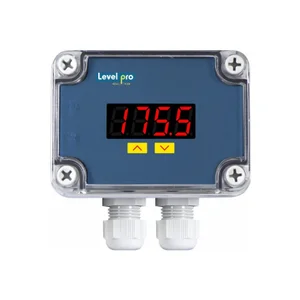

The Level 250-1121 level controller has a single 4 to 20mA current input, to power the device. Measurement input is equipped with
safety circuits, saving internal electronics against overload. The range of the result is from -999 to 9999, with definable decimal
point positions. The device is equipped with relay (signalized by LED on front panel). This output can alarm with a light as well as
signal with sound. Configuration can be done using an IR remote controller.
