Features
- Nominal diameter ranges from DN 25 to 600 (1" to 24") larger sizes also available
- Advanced signal converter with full range of I/O 's and communication protocols
- Diagnostic functions according to NAMUR NE107
- Accuracy: ±0.3% +2 mm/s
- Measures conductive and non-conductive liquids
- Cryogenic and high process temperatures
- Standard and straightforward applications
- Non-viscous aqueous liquids and extreme viscous liquids
- No moving parts
- Full bore unobstructed sensor
- No need for auxiliary parts

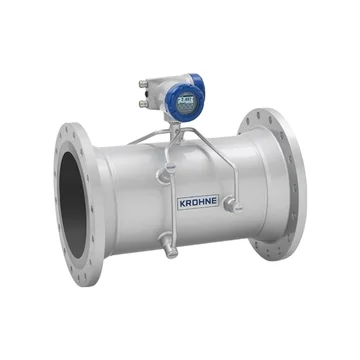

The KROHNE OPTISONIC 3400 Flow Meter is a 3-beam, inline, ultra sonic flowmeter, designed especially for measuring homogeneous
conductive and non-conductive liquids, with high accuracy and reproducibility, over a long period of time. KROHNE is a main
supplier for ultrasonic in-line process flowmeters for liquids with the largest installed base / proven record in terms of
robustness and measurement accuracy.
The OPTISONIC 3400 Flow Meter features advanced meter diagnostics providing extensive self-checking of internal circuits and
information regarding the health of the measuring sensor, but just as importantly, vital information about the process and
process conditions.
Another unique feature of the OPTISONIC 3400 is the free of charge measurement of velocity of sound per acoustic path. For
instance, this can supply information about pollution in the liquid, or changes in the process conditions.
Applications for the OPTISONIC 3400 include:
Conductive and non-conductive liquids
Cryogenic- and high process temperature, low and extreme high pressure range
Expanded applicability; for standard and high performance applications
Measuring aqueous liquids as well as extreme viscous oils
High turn down ratio; e.g. transportation pipeline measurements
Broad pressure and temperature range (e.g. midstream oil measurements)
Multiple products; e.g. allocation measurements in on/off loading
Water utilities in all process industries; make-up water, boiler feed water, demineralized water
