Features
- Measures mass, density, and temperature
- Outer cylinder burst pressure greater than 100 barg / 1450 psig
- Easily drained and easy to clean
- Resistant to installation and process effects
- Excellent zero stability
- Low energy consumption for low operating costs
- Rapid signal processing
- Modular electronics with data redundancy
- "Plug & play" replacement of electronics
- IP 67, NEMA 4X protection

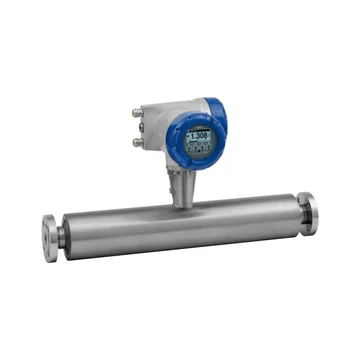

The KROHNE OPTIMASS 7000 coriolis mass flow meter is the optimum meter for demanding mass flow and density
measurement applications of fluids, gases and solids. Featuring a single straight titanium measuring
tube, the OPTIMASS 7000 is ideal for use in applications involving highly corrosive fluids, custody transfer,
non-homogenous mixtures, and slurries.
KROHNE OPTIMASS 7000 coriolis mass flow meters offer excellent accuracy and repeatability for all measured
values. In addition to mass flow and density measurements, the OPTIMASS 7000 also calculates volume, referred
density, concentration, and velocity. The meters include advanced digital filtering and an innovative sensor
design which provide exceptional immunity to disturbances from nearby process equipment. The OPTIMASS 7000 is
compatible with a number of KROHNE flow converters which can be either meter or remote mounted.
The OPTIMASS 7000 meters are designed to handle tough applications. The meters are supplied with secondary
pressure containment as standard which allows maximum pressures up to 1450 psig. Temperatures up to 212°F are
also no problem for the meter. The OPTIMASS 7000 is available with a wide range of standard flange and hygienic
process connections. A number of hazardous area approvals are available as well.
