Features
- 20 Point Linearization
- Isolated Scaled Pulse Output of Total
- Nonvolatile Flash Memory of Setup Data and Calibration Information
- PC Setup Software
- 4-20mA Analog Output Option

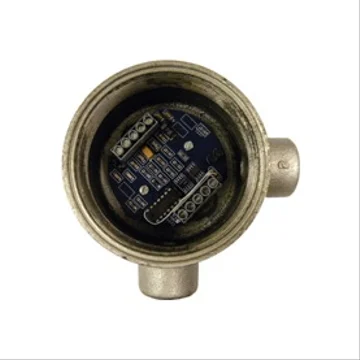

The SHPFI-M loop powered flow transmitter is a smart frequency to current converter Loop Powered Flow Transmitter and also a
frequency to frequency pulse scaler. It is intended to be used with flow meters and similar devices who generate a pulse signal
either from a magnetic pickup or a contact closure whose frequency is related to flow rate and where each pulse represents a
quantity of flow. The SHPFI-M also contains a linearization function commonly required by flow meters to improve their accuracy.
The flow rate and total are computed within the SHPFI-M and the 4-20mA analog output and the high level scaled pulse output are
generated from these computed values. The SHPFI-M is programmed using a special setup program from a PC. A special programming
cable called the BSAC1 is also required. These items are purchased separately. The computed Rate and Total may also be viewed
on your PC using these special cables.
