Features
- Ranges from -1 to 1000 bar
- Dual LCD display
- ±0.05% FS standard accuracy (Optional .025% and .01%, for ranges ≥20 Bar)
- 0 to 50°C compensated temperature range
- RS485 communications
- G 1/4" pressure connection
- IP65 protection
- Intrinsically Safe version available

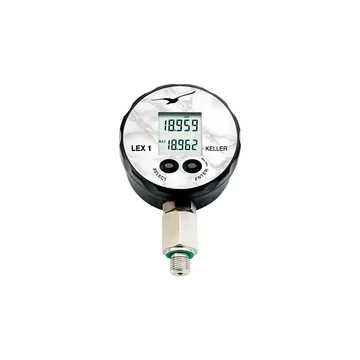

The Keller LEX1 Digital Pressure Gauge is a highly accurate, microprocessor controlled digital pressure gauge. With an
optional accuracy of up to ±0.01% over ranges from -1 to 1000 bar, the LEX1 is suitable for nearly any application.
Temperature compensation ensures accuracy in all conditions.
The LEX1 Gauge is easy to set up. Two buttons perform set-up and all functions. A dual LCD display indicates current
pressure as well as MIN/MAX value. RS485 communications allow the LEX1 to interface with a computer.
The battery-powered LEX1 is a robust instrument with an IP65 rating and optional Ex II 2 G EEx ia IIC T4 classification
making it suitable for a wide range of locations and environments. An intrinsically safe version of the LEX1 incorporates
an additional protection switch is available for hazardous locations.
