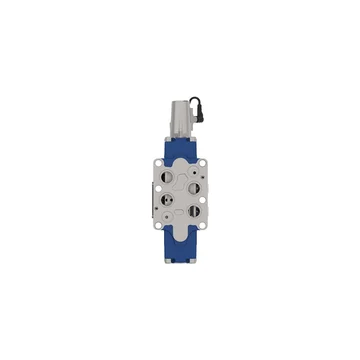

KBHDG5V-8-2C375N250-EX-M1-PE7-H4-12 | Vickers Proportional Two-Stage Directional Valves

Ordering Information Valve type K Proportional valve Integral amplifier B Integral amplifier "B" series Feed back arrangement H From pilot and main stages Control type D Directional valve Mounting G Subplate mounted Operation 5 Solenoid controlled, pilot operated Pressure rating V 310 bar (4500 psi) Size 05 Interface 8 Size 08 Spool type, flow rating and metering 2C375N250 375 L/min (99 US gpm), “A” port flow; 250 L/min (66 US gpm), “B” port flow Pilot supply EX External (with reducer) Electrical Control Signal M1 ±10 demand signal, ±10V monitor signal Electrical connection PE7 7 pin connector with plug Coil rating H 24 VDC amplifier supply Port T pressure limit rating 4 50 bar (700 psi) Design number 12 12 series
