Features
- Input channels two: 100 Ohm PRT, EN 60751 (Pt100), four wire
- Temperature range: -328 to 1562°F (-200 to 850°C)
- Units: °C, °F and Ohms
- Accuracy: ±0.012°C
- Records average, min, max over 4000 measurements
- Adjustable: 1 second to 30 minutes

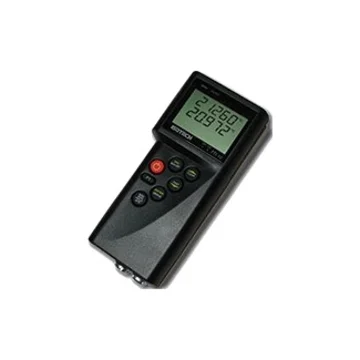

The Isotech TTI-10 Handheld Thermometer is a high accuracy handheld temperature indicator with two platinum
resistance thermometer inputs. The high precision makes the instrument particularly suitable as a portable
reference thermometer to use alongside Isotech temperature calibrators such as the Fast-Cal, Isocal-6 and
Dry Block ranges. It is also suited for high accuracy measurements in industrial and scientific applications.
TTI-10 brings laboratory level performance of up to 10mK (0.01°C) and resolution up to 0.001°C in a portable
handheld instrument. Battery life is typically 20 hours from a 9V PP3 battery and a protective rubber boot
offers protection in field use.
The instrument can capture the minimum, maximum and average values over up to 4000 measurements with a
logging rate selectable in the range of 1 second to 30 minutes.
The TTI-10 has an easy to use "learning calibration mode" that allows the TTI-10 to be system calibrated with
a Platinum Resistance Thermometer simply by comparing it to a calibrated standard thermometer, no need to calculate
coefficients or data, simply enter the reference probe temperature or temperatures and the TTI-10 does the work for
you.
The USB interface allows connection to Isotech Cal Notepad software with its charting and logging features.

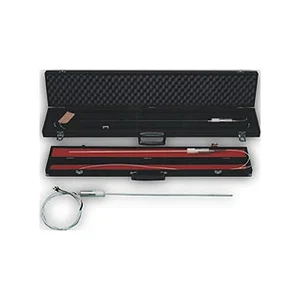

TTI-10 supports Isotech Semi Standard Platinum Resistance probes with system uncertainties (probe and instrument) as
low as 20mK. We recommend the 935-14-61 and 935-14-16 probes detailed below and have special calibration deals available.
Other probes and ranges are available, refer to Semi Standards – Platinum Resistance Thermometers in catalogue.
