Features
- 35 x 160mm calibration volume
- ±0.03°C stability (Basic & Site models)
- ±0.02°C stability (Advanced model)
- Common uniformity specifications at 250°C
- <0.011°C Radial, Liquid Bath mode
- <0.02°C Axial, Liquid Bath mode (40mm)
- <0.02°C Radial, Dry Block mode (between wells)
- <0.25°C Axial, Dry Block mode (40mm)
- 15min heating time from 25 to 250°C

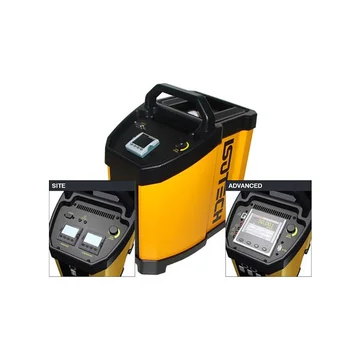

The Isotech Calisto 4953 temperature calibrator can be used as a dry block or liquid bath. Accessories are available for surface sensor calibration, to calibrate
infrared thermometers and even to use as an ITS-90 Fixed Point System with calibration uncertainties as small as 0.0005°C. With excellent stability and distributed
heating / cooling zones for good uniformity these calibrators offer proven thermal performance and are easy to use.
Basic Model
Digital display of set and nominal block temperature
Use with a separate external indicator to compensate for gradients and loading
Calibrator does not need calibrating; only the indicator & sensor need re-calibration
Cal Notepad software
Serial PC interface
Site Model
Digital display of set and nominal block temperature
Single channel indicator for reference probe
Best Practice calibration with established traceability and uncertainty
Re-calibration requires sending whole unit in
Cal Notepad software
Serial PC interface
Advanced Model
Digital display of set and nominal block temperature
Three channel indicator for reference probe and units under test
Advanced features including automatic temperature cycling and logging
Best Practice calibration with established traceability and uncertainty
Re-calibration requires sending whole unit in
I-Cal Easy LOG software & built-in web server
Ethernet & USB host PC interface
