Features
- All stainless steel 316 construction, Tefon isolator
- Integral electronic switching, relay output
- Built-in slosh dampening
- Hermetically sealed, vibration resistant construction
- No moving parts
- For conductive liquids
- Minimum or maximum limit detection
- 100 psi (6.9 bar) max pressure
- 212°F (100°C) max temp
- Supply voltage: 12-30 VDC
- Output: SPDT relay, 1A; N.O. or N.C.
- Fitting size: 1/8" to 1/2" NPT

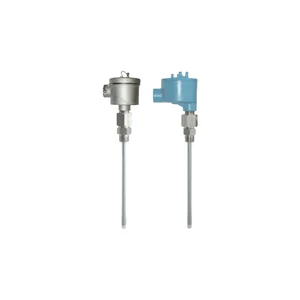

The Intempco LLS100 Conductivity Level Switch can be used in harsh environments, for liquid level limit detection in metallic and non-metallic tanks containing electrically conductive liquids. The probe, fitting and housing are constructed of stainless steel 316; the isolator is Teflon. The LLS100 sensor features built-in protection against reverse polarity, overvoltage and electrical shielding to deliver long-term reliability. The output is relay SPDT which can be configured as either NO or NC (4-wire) or both NO and NC (5-wire).
Applications include:
Limit detection of conductive liquids
Water level monitoring in oil separators
Steam boilers
Waste water level monitoring
Leak detection
Coolant level monitoring
