Features
- High Isolation
- Protective Separation acc. to EN 61140
- Input voltage drop of less than 2V reduces impact on the primary current loop
- High-density DIN-rail mounting
- Plug-in screw terminals
- High accuracy

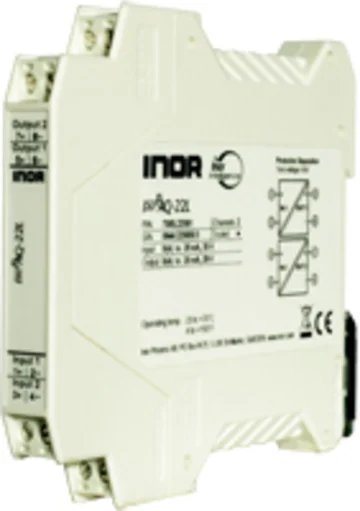

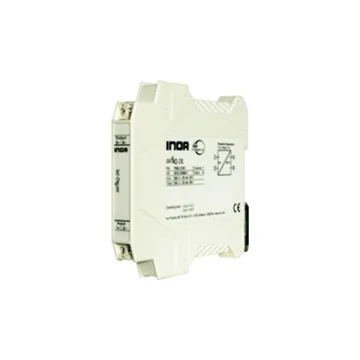

The INOR IsoPAQ-21L and IsoPAQ-22L are 1- and 2-channel loop powered isolators are used for electrical isolation of 0 to 20mA or 4 to 20mA signals
to avoid measurement errors due to different voltage potentials or ground loops in an instrument installation.
The isolators need no power supply, which contributes to reduced installation costs compared to isolation transmitters. The high-isolation
level of 4kV provides an effective protection for downstream devices.
The 2-channel version, IsoPAQ-22L offers a very cost effective alternative combined with a high-density mounting.
The high reliability and the protective separation are additional features that ensure a safe system operation.
