Features
- Over 35 gases available
- 500 mL/min flow rate
- Pre-calibrated ‘plug-and-play’ smart sensor cartridge
- 3 built in relays (Form C) for Alarm 1, 2 and Fault
- 24VDC nominal ±10% operating voltage
- Power over Ethernet (PoE) communication
- 36-57VDC, 48VDC nominal operating voltage
- Modbus/TCP Ethernet communication
- Keypad interface and remote Web Browser Interface
- Password protected menu to preserve system integrity
- Bright LEDs and large, intuitive backlit LCD display
- Isolated 0-22mA analog output
- With fault & event reporting
- Robust extractive pump system sampling up to 30m
- Reflex sensor health check for improved safety
- TempraSureTM temperature compensation technology
- RS232C / PPP protocol service port
- Meets EN 50270:1999 (Type2) and EN 55011:2000
- ETL approved UL 61010B and CSA-C22.2 No. 1010.1-92
- IEEE 802.3af-2003
- CE marked

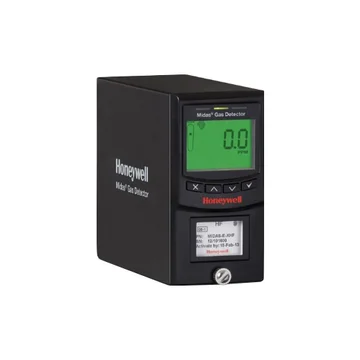

The Honeywell MIDAS is a gas monitoring system for fast and reliable response to the presence of virtually all gases used or generated in the
semiconductor and other industrial manufacturing applications. MIDAS offers lower cost of ownership benefits for gas detection through a
combination of extended sensor calibration periods, flexible communications architecture and patented diagnostics that monitor sensor performance
and flow control.
MIDAS uses a universal transmitter platform that detects the majority of toxic, ambient and flammable gases that must be monitored in a typical
industrial process environment. The pre-calibrated ‘plug-and-play' smart sensor cartridge makes sensor replacement quick and easy to manage with
no tools required, and prevents any operator error associated with using incorrect or depleted sensors. Bright LED lights and an intuitive, icon
driven interactive menu guarantee instant alert to the gas reading or alarm level coupled with password protected menus for configuration, test
and calibration.
MIDAS is very compact in size and its easy access metal chassis design makes it simple to install in crowded, increasingly complex process
environments or retrofit applications where space is at a premium. MIDAS has flexible power and communications built in as standard including 3
on-board relays, 0-22mA analog output, Modbus/ TCP Ethernet digital outputs, as well as the innovative Power over Ethernet (PoE) protocol - a single
Ethernet connection for all power, control and communication requirements. Cost effective integration with PLC and FieldBus systems is greatly
simplified with the MIDAS architecture.
MIDAS will monitor points up to 30m (100ft) away from the transmitter and flow rates are regulated automatically using patented control technology
to ensure error free gas sensing operation. Honeywell Analytics designs and manufactures its own sensors using advanced robotics to ensure unbeatable
quality and reliability.
A complete MIDAS gas monitoring system needs each of the following parts:
MIDAS transmitter
Sensor Cell (if not included with purchase of transmitter)
Pyrolyzer module (only required for NF3, CH2F2, C4F6, CH3F,
C5F8 and, SF6 gases)
Sample and exhaust tubing
End of line filters
