Features
- Install in any position
- 360° rotatable guard/scale
- Easier-to-read linear scale
- No flow straighteners or special piping required
- Up to 240°F
- ±2% full scale accuracy
- ±1% Repeatability
- Special scales available
- Calibrated for 1.0 S.G.
- Aluminum, brass, or SS body
- 1,000 psi (69 bar) maximum
- 0.5-5.0 SCFM up to 200-02200 SCFM
(0.2-2.2 L/SEC up to 75-1130 L/SEC) - 1/4 to 3 inch ports
- SAE, NPTF and BSPP ports
The Hedland Flow Meter for Air and Compressed Gases is a low cost,industrial class variable area flow meter.
These in-line flow rate indicators are designed to monitor pressurized air and other compressed
gases. This Hedland meter features rugged metal body construction that is relatively insensitive
to shock and vibration.
The Hedland Flow Meter for Air and Compressed Gases is offered in seven port sizes from 1/4" to 3" for flow ranges from 0.5 to
2200 SCFM. These flow meters have a temperature range of -20 to 240°F (-29 to 116°C).
The Hedland Flow Meter for Air and Compressed Gases is available in aluminum, brass, and
stainless steel. The stainless steel flow meters are pressure rated for 1,500 psi/103 bar maximum
with a 10:1 safety factor. Aluminum and brass products are pressure rated for 1,000 psi/69 bar
maximum (250 psi/17 bar maximum for 3" series) with a 10:1 safety factor. Brass meters are
highly recommended for air systems with high water content or for systems where galvanic
corrosion may be a problem.
Multi-Pressure Scale

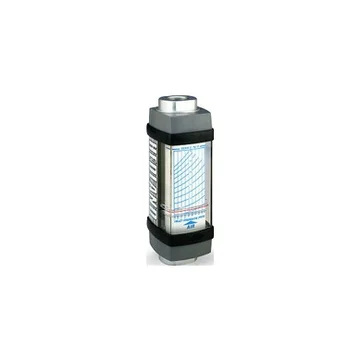

This simple, direct reading flow scale features a vertically graduated scale, calibrated for air
(1.0 specific gravity @ 70°F) in standard cubic feet/minute (SCFM). It also displays a horizontally
graduated series of pressure levels (range lines) calibrated from 40 to 130 PSI.
Applications
Test Air Compressor Output at Pressure
Monitor Air Line Loss
Maximize Pneumatic Tool Performance
Check Relief Valve Settings
Adjust Regulator for Proper Flow Rates & Pressures
