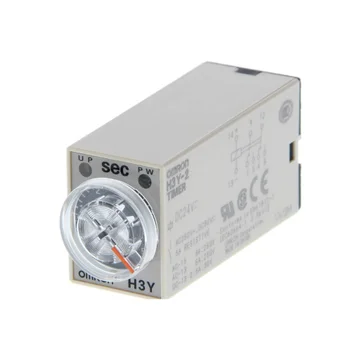

H3Y-2 DC24 30S | Omron | Solid-state Timer H3Y

برند :

Omron

پارت نامبر :

H3Y-2 DC24 30S

شماره انبار :

ST-3165

زمان تحویل:

6 هفته

قیمت حدودی:

2,090,000 تومان

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، قیمت‌ها حدودی بوده. لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

تامین کننده


یاران صنعت فجر

یاران صنعت فجر

ارسال به سراسر کشور

ضمانت اصالت و سلامت فیزیکی کالا

ویژگی ها / Specifications


.red {color#F00;}.red {color #F00;}.red1 { color #F00;}Estimated Lead Time Usually ships in 1 - 10 working days.Manufacturer Omron Product no H3Y-2 DC24 30SProduct type Solid-state Timer
H3Y Rated supply voltage24VDC If power supply incorporates a single-phase full-wave rectifier. Operating voltage range 85 to 110% of rated operating voltage Power consumption ( Relay ON ) (at 24 VDC) Power consumption ( Relay OFF ) (at 24 VDC) Reset voltage 10% min, of rated supply voltage Number of time ranges 1 Time ranges 1s~30s Operating mode Power ON-delay Control output (Type) Time-limit DPDT Control output (Contact output) Switching capacities (Resistive load (cosf = 1)) 250VAC 5A Minimum applicable load 1 mA at 5 VDC (failure level P) Operating resetting Time-limit operation/Self-reset Ambient temperature Operating -10 to 50°C Storage -25 to 65°C Ambient humidity 35~85% Accuracy of operating time ±1% max.(FS) Setting error -10 to 10% ±50 ms max. (FS) Reset time 0.1 s max. (including halfway reset) Influence of voltage ±2% FS max. Influence of temperature ±2% FS max. Insulation resistance 100 MO (at 500 VDC) Dielectric strength Between current carrying terminals and exposed non-current carrying metal parts 2,000 VAC 50/60 Hz for 1 min (Terminal screw sections are not excluded) Between operating power circuit and control output 2,000 VAC 50/60 Hz for 1 min Between contacts of different polarity 2,000 VAC 50/60 Hz for 1 min Between non-continuous contacts 1000 VAC 50/60 Hz for 1 min Impulse withstand voltage Between power terminals 1 kV Between current carrying terminals and exposed non-current carrying metal parts 1.5 kV Noise immunity ±1.5 kV square-wave noise by noise simulator (pulse width 100 ns/1 us, 1-ns rise) Static immunity Mulfunction 4 kV, Destruction 8 kV Vibration resistance (Destruction) 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 1 hour Vibration resistance (Malfunction) 10 to 55 Hz, 0.5-mm single amplitude each in 3 directions for 10 min Shock resistance (Destruction) 1,000 m/s**2, 3 times each in 6 directions Shock resistance (Malfunction) 100 m/s**2, 3 times each in 6 directions Mechanical life expectancy (relayoutput) 10 million operations min. (under no load at 1,800 operations/h) Electrical life expectancy (relay output) 500,000 operations min. (5 A at 250 VAC, resistive load at 1,800 operations/h) Degree of protection IP40 External connection method 8-pin round socket Case color Beige Weight (Main) 0.05 Kg Shipping Weight 1 Kg
