Features
- ±0.2% accuracy
- One input channel
- Terminal blocks:
- Pluggable screw type
- 14 AWG max wire gauge
- Store up to 10 batch sizes
- Customize up to 10 batch sizes
- Remote control wiring with start/stop/resume terminals
- 3 programmable relays
- Two-stage control to prevent overfilling
- Confirmation START/RESUME
- Enter 10 different K-Factors

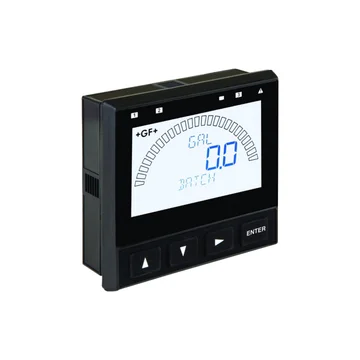

The GF Signet 9900-1BC Batch Controller system provides control capability and process fine tuning in a familiar package. The programming
interface uses a four-button keypad and an intuitive menu for adjusting a batching system to the best performance possible. Choose between
simple or advanced modes. In simple mode, relay outputs can be used for batching, external counter, missing signal alarm and 4 to 20 mA output
can be used to indicate batch status. In advanced mode relays can also be used for end of batch pulse, two-stage shutdown, overrun alarm, high
flow detection, total volume or source volume alarm.
Designed for a variety of batch applications, the 9900-1BC can save up to 10 batch sizes for batching or blending a variety of liquid volumes.
Customize batch names for easy distinction between batches. One K-Factor can be used for all batches, or use a different K-Factor for each batch
for when different liquids are batched. User can choose to be prompted prior to starting a batch with a Yes/No or with a password to prevent
inadvertently starting a batch.
The 9900-1BC operates on 10.8 to 35.2 VDC, regulated. Connect a remote start or stop switch for remote batch control. Use the end-of-batch pulse
to trigger the next step in the process.
Applications for the GF Signet 9900-1BC Batch Controller include:
Batch process
Filter backwash initiation
Chemical addition
Canning and bottling
