Features
- Digital S3L or 4 to 20mA loop output
- Electrode Slope Efficiency measurement
- Determine overall health of the pH measurement
- Memory chip interface that allows for transferable info
- Manufacturing, calibration, and runtime data
- Auto configuration for pH or ORP operation
- Automatic temperature compensation
- EasyCal calibration aid (optional)
- Includes automatic buffer recognition
- CE, FCC, & RoHS compliant

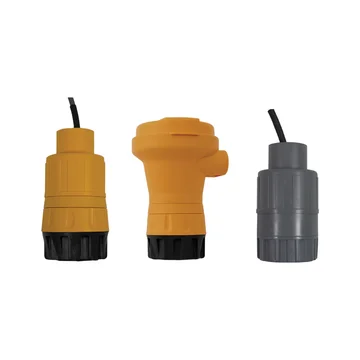

The GF Signet 2751 pH/ORP smart sensor electronics feature field free calibration, out of range glass impedance, and broken glass detection to alert the operator to probe failure or maintenance needs. It self-configures for pH or ORP operation via automatic recognition of the electrode type. The optional EasyCal feature allows simple push-button calibration and includes an LED indicator for visual feedback. The 2751 has a preamplified signal and features two different outputs: a two-wire 4 to 20mA loop output with EasyCal function or a digital (S3L) output which allows for longer cable lengths and is compatible with the Signet 8900 or 9900 instruments, and Profibus Concentrator. The DryLoc electrode connector quickly forms a robust assembly for submersible and in-line installations. NEMA 4X junction enclosures are integral parts of the 2751 in-line version and are also available as accessories for the submersible. The 2751 submersible preamplifier can also be used as an in-line preamplifier when used with the 3/4 or 1 inch threaded sensors including the 2724, 2734, 2774 and 2764 series electrodes. The in-line preamplifier can be used with Signet fittings up to DN100 (4in) and wet-tap assemblies. GF Signet 2751 pH/ORP Smart Sensor Electronics Applications Water/wastewater treatment Neutralization systems Scrubber control Effluent monitoring Surface finishing Flocculent coagulation Heavy metal removal and recovery Toxics destruction Sanitization systems Pool & spa control Aquatic animal life support systems
