Features
- Universal input
- Thermocouple, RTD, voltage, current, mV
- Improved input indication accuracy, up to ±0.2%
- 0.1 to 99 second control cycle
- On/Off control & PID controls with auto tuning
- PID, 2-degrees-of-freedom PID, & fuzzy
- Open-loop supported PID2 control
- Ramp soak function (simple program control)
- 64 steps x 1 pattern
- 32 steps x 2 patterns
- 16 steps x 4 patterns
- 8 steps x 8 patterns
- Directly connect to a PC with optional USB cable
- This will bus-power the unit
The Fuji Electric PXF4 temperature controller socket-type was developed as a successor to the PXR4 socket-type. It is equipped with multiple input and output options
as well as sophisticated control functions making it suitable for a wide range of applications. You can use any input among RTD, thermocouples,

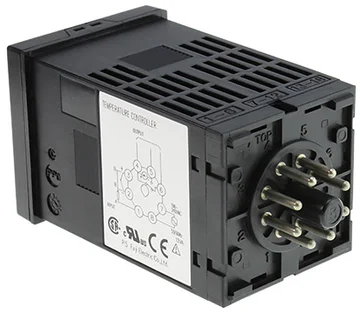

voltage, current, and mV. Switching the input is an easy parameter change. The socket terminal on the back makes this unit conveniently plug and play.
The PXF series features highly accurate input indication:
RTD is ±0.2% of indication value ±1 digit or ±0.8°C ± 1 digit, whichever is larger
Thermocouple is the larger of ±1°C ±1 digit or ±0.3% of indicated value ±1 digit
Voltage and current are ±0.3% FS ± 1 digit
