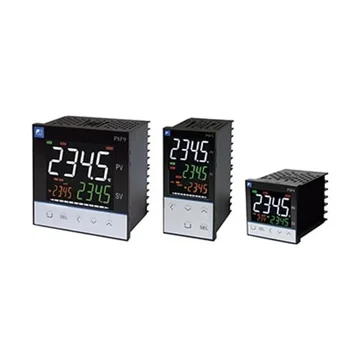

Fuji Electric PXF Series VMD Temperature Controllers

Features

• Position feedback optional on the PXF5 & PXF9
• Universal input
  • Thermocouple, RTD, voltage, current, mV
• Improved input indication accuracy, up to ±0.2%
• 0.1 to 99 second control cycle
• PID controls with auto tuning
  • PID, 2-degrees-of-freedom PID, & fuzzy
• Ramp soak function (simple program control)
  • 64 steps x 1 pattern
  • 32 steps x 2 patterns
  • 16 steps x 4 patterns
  • 8 steps x 8 patterns
• Directly connect to a PC with optional USB cable
  • This will bus-power the unit

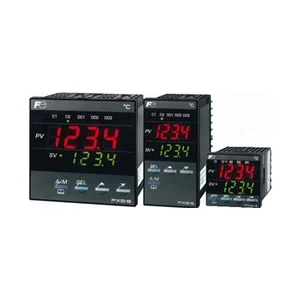

The Fuji Electric PXF VMD temperature controllers were developed as successors to the PXG. They are equipped with universal input for RTD, thermocouples, voltage, current, and mV. Switching the input is an easy parameter change. The PXF series features highly accurate input indication: RTD is ±0.2% of indication value ±1 digit or ±0.8°C ± 1 digit, whichever is larger Thermocouple is the larger of ±1°C ±1 digit or ±0.3% of indicated value ±1 digit Voltage and current are ±0.3% FS ± 1 digit
