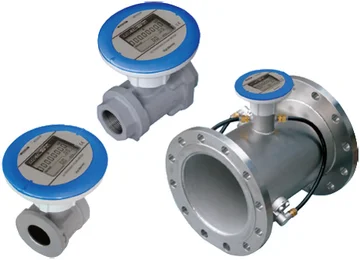

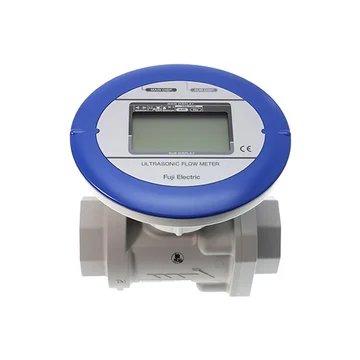

Fuji Electric FWD Ultrasonic Flow Meter

Features

• Air or nitrogen measurements
• 25, 32, 40, 50, 65, 80, 100, 150, 200mm diameters
• Flow ranges:
  • Minimum: ±0.6 to ±35 m3/h
  • Maximum: ±240 to ±11870 m3/h
• 1:60 rangeability
• Various output functions
• 24 VDC or built-in battery
• 5m or 20m cables available

The Fuji Electric FWD Ultrasonic Flow Meter measures flow rates of the air or nitrogen gas in pipes from 25mm to 200mm. As an air flow meter it is ideal for management of the operating load rate of the compressor, management of the amount of the used air in the factory and detecting of the air leakage in the factory. With no moving parts the FWD has high resistance to fluids containing oil, vapor and dust. The wide rangeability of 1:60 allows for accurate measurements of even smaller flow rates. The built in battery (10 year life span) makes power line construction unnecessary. An external power supply of 24VDC is also available.
