Features
- 0mV to 100V DC voltage output
- 0 to 100mA DC current output
- Automated switch-test function
- Compatible with MET/CAL calibration software
- Includes 24VDC transmitter loop power supply
- 32 to 122°F (0 to 50°C) operating temp

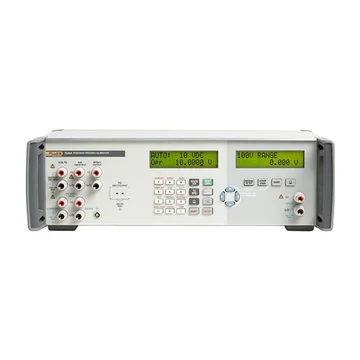

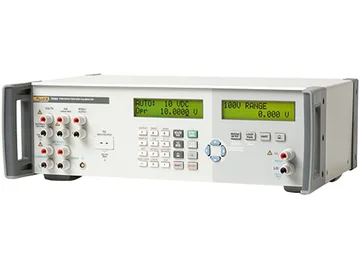

The Fluke 7526A Precision Process Calibrator offers the best balance of economy and accuracy for benchtop calibration of temperature and pressure process instrumentation. Easily calibrate RTD and thermocouple readouts, pressure gauges, temperature transmitters, digital process simulators, data loggers, multimeters and more.
The 7526A packs a lot of capability into one box, allowing you to calibrate a wide-ranging and varied workload. One calibrator performs all of these functions:
Simulates and measures nine RTD and thirteen thermocouple types
Measures pressure up to 10,000 PSI (69 MPa) when combined with 750P modules
Sources and measures dc voltage to within 0.004 % of reading
Sources and measures dc resistance up to 4 kΩ
Sources dc current from 0 mA to 100 mA
Accurately measures dc current from 0 mA to 50 mA
Sources 24 V dc loop power
The user interface includes cursor controls, function keys and a ten-key keypad, making it easy to navigate through intuitive menus; store and recall up to nine setpoints for each input/output parameter; enter RTD or SPRT coefficients; and easily change display units with a key press. With two LCD displays, you can easily view both source and measurement results simultaneously.
