Features
- Output pressure: 0 to 100 psi / 0 to 6.9 bar
- Output vacuum: 0 to -13 psi / 0 to -900 mbar
- Exposed Materials: Aluminum, silicon, neoprene, stainless steel, Buna-N
- Adjustment: Fine volumetric pressure and vacuum adjuster
- Dimensions: 150 mm x 100 mm
- Weight: 226 grams or .5 lbs (pump only)

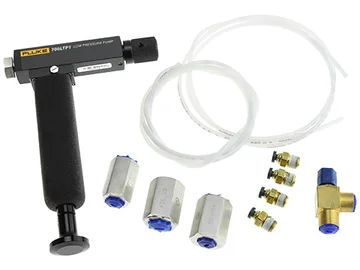

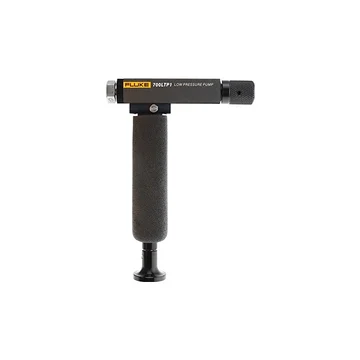

The Fluke 700LTP-1 Low Pressure Test Pump is hand operated and designed to generate either vacuum to -13 psi / -0.90 bar or pressures to 100 psi / 6.9 bar. The Fluke 700LTP-1 has two pressure ports with quick fit connectors. Test hoses are terminated with 1/4-NPT female fittings that can be adapted using the BSP/ISO adapters. For use with 700 series pressure modules and 717 pressure calibrators. Ideal for low pressure applications requiring accurate low pressure testing: Pump can be easily cleaned without disassembly Adjustable pressure relief valve with slow-bleed capability. Allows the slow release pressure at a controlled rate Quick fit connectors, one for the reference port for connection to a Fluke 700 series pressure module and one to connect to a unit under test Slim design, easy to carry and use The Fluke 700LTP-1 Low Pressure Test Pump ships complete with: Fluke 700LTP-1 Low-pressure Test Pump 1/8 in NPT male/female tee (2) 1m hoses (4) 1/8 inch NPT male quick connects (2) 1/8 NPT female to 1/4 in BSP female Seal Kit Instruction Sheet
