Features
- Model LC30 Thermo-Flo Flow Controller
- Connects to all Flowline flow switches (FT10/GT10)
- Fail-safe relay control of pumps or valves with 0-60 second delay
- Sensor input: (1) flow switch
- Contact type: (1) SPDT relay
- LED indication: sensor, power & relay
- Polypropylene enclosure rated NEMA 4X
- Sensor supply: 24 VDC @ 50 mA
- Strobe type option:
- -10X1: N/A
- -10X2: Xenon tube
- Strobe flash option:
- -10X1: N/A
- -10X2: (1) per second
- Contact rating: 250 VAC @ 10A
- Consumption: 0.25A maximum
- Supply voltage: 120 / 240 VAC @ 50-60 Hz

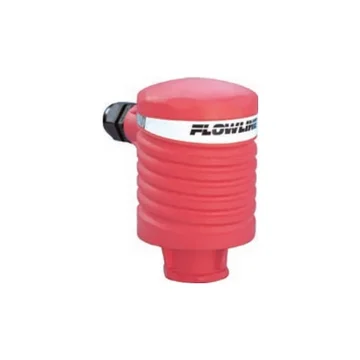

The Flowline LC30 Thermo-Flo Flow Controller is a general purpose flow controller that accepts one flow sensor input, and
provides one 16A relay for low flow pump or process protection. The optional flash alarm brings attention to low-flow
alarm conditions. Package this flow controller with our liquid or gas flow switch sensors.
Additional features / benefits of the Flowline LC30 Thermo-Flo Flow Switch include:

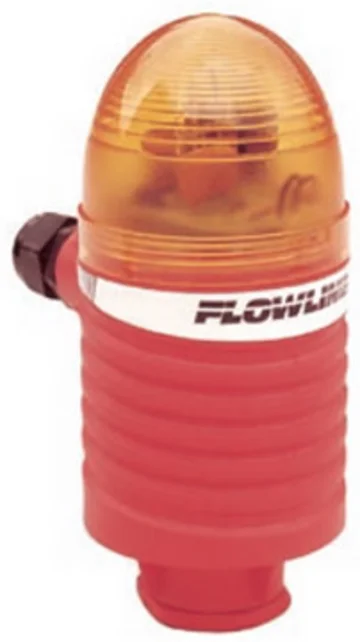

Optional strobe brings immediate attention to flow alarm conditions
Polypropylene enclosure rated NEMA 4X with swivel base for conduit alignment

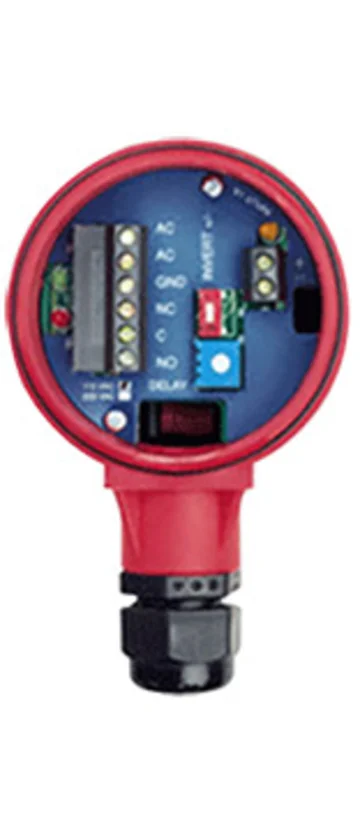

Easy setup with LED indicators for sensor, power and relay status
Invert switch changes relay state from NO to NC without rewiring
Compatible with Flowline liquid and gas flow switch sensors
Connects to all Flowline flow switches (FT10/GT10)
Mounts directly onto flow switch
Switches load up to 10 Amps including valves, horns, and buzzers
Ideal for chemical injection lines
Optional visual alarm
