Features
- Maximum temperature:
- Cold water meter: 105°F (40°C)
- Hot water meter: 194°F (90°C)
- 150psi maximum operating pressure
- Materials:
- Body: FRP-reinforced polyamide (cold water meter) or cast bronze (cold or hot water meter)
- Internals: Engineered thermoplastic
- Magnet: Alnico
- ±1.5% of reading accuracy
- Reed switch sensor
- 20mA maximum current
- 24Vdc or Vac maximum voltage
- 12ft (4m) standard cable (2000ft max run)

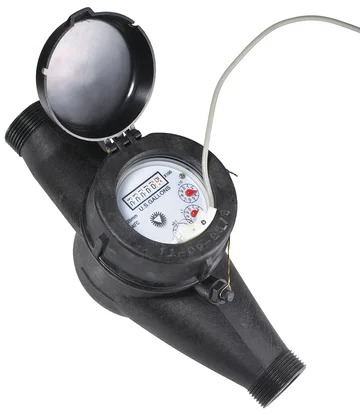

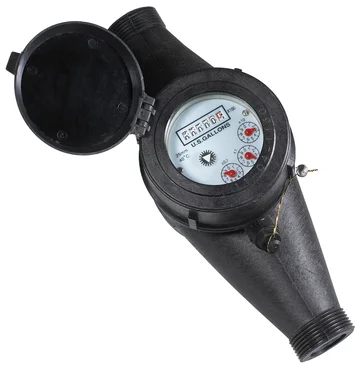

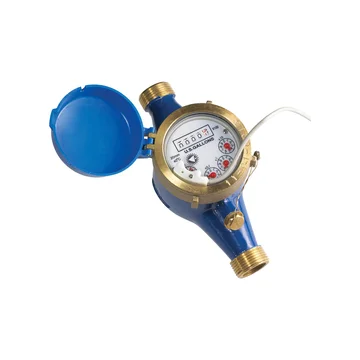

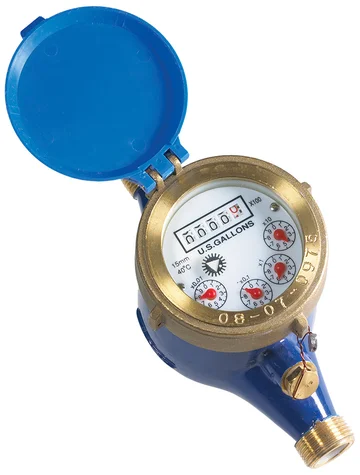

The FloCat ACS Series water meter uses the widely accepted multi-jet principle, as a gear train drives the register totalizer dials. For pulse output meters, a reed switch sensor is attached to the outside of the lens and detects a magnet arm that has replaced one of the dial pointers. The reed switch output is a dry contact closure and does not require power. The ACS Series meter models are available for cold or hot water use.
