Features
- Five flow ranges
- Available with SAE or BSPP ports
- SAE measures in GPM & °F
- BSPP measures in LPM & °C
- Large 3-1/2 digit LCD for flow and temperature
- Helical tube pressure gauge
- Loading valve with fingertip control of pressure
- Platinum resistance temperature sensor
- Pressure surge protection
- Turbine flow sensor provides fast response
- Pressures up to 6000 psi (414 bar)
- Temperatures up to 300°F (150°C)
- ±1% of full scale flow accuracy
- ±0.2% repeatability

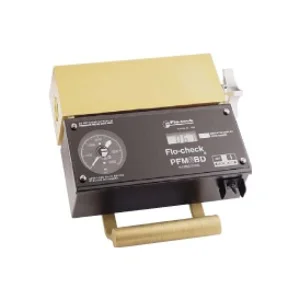

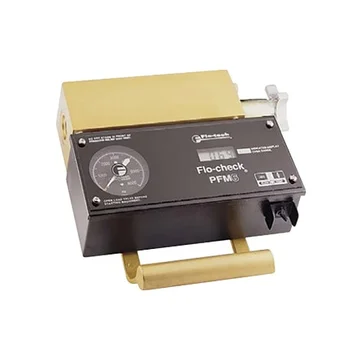

The Flo-tech PFM6 digital portable hydraulic testers are designed for fast diagnostic troubleshooting of all types of mobile or stationary hydraulic systems and components. These self-contained testers feature laboratory accuracy and provide flow, pressure and temperature measurements simultaneously from one point. Simple operation includes a toggle switch to display either flow or temperature readings and a loading valve that operates with fingertip control. The dual scale helical tube pressure gauge offers pulsation dampening and high overpressure capacity. For safe operation, all testers include pressure surge protection.
