Features
- 5-digit rate display
- 5-digit totalizer with 4-digit overcarry
- Built-in transmitter power supply
- Three plug-in card slots
- Optional setpoint alarm cards
- AC & DC powered versions
- NEMA 4X & IP65 rated
- CE Compliant

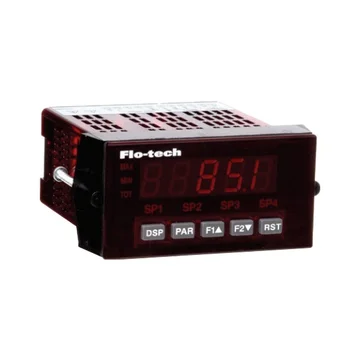

The Flo-tech F6700 / F6750 series digital display with integrated signal processor accepts a 4 to 20mA signal from Flo-tech's Activa
sensor array as well as any other 4 to 20mA or 0 to 10VDC source. These 5-digit displays can be scaled to most engineering units and are
easily programmed using the front panel buttons or available programming software. To meet your specific requirements, each display
accepts up to three optional plug-in cards. One card for each of the following function types can be installed in each display:
Analog Outputs – A linear DC output signal card will be set up to provide either a 4 to 20mA,
0 to 20mA, or 0 to 10VDC signals and can be scaled independent of the input range.
Communications – Optional plug-in cards to facilitate digital communications include:
RS232, RS485, Modbus, Profibus, and DeviceNet.
Setpoint Alarms – Select from dual FORM-C relays (5 Amp), quad FORM-A relays (3 Amp) or
either sinking or sourcing quad open collector logic outputs.
The analog output and communication cards will be installed by the factory at time of order, or they may be installed by the customer at
a later date. The setpoint alarm cards are available for customer installation and setup only.
Applications include:
Remote flow meter monitoring
Totalizing
Alarm processing
Process control
