Features
- Measurement ranges:
- 5MHz probe: 0.040" to 20" of steel
- 10MHz probe: 0.020” to 20" of steel (optional)
- Sunlight readable dot-matrix display
- Records 100K readings
- Gain; variable adjustment
- Echo to echo
- B-scan; Displays a cross section of the test piece
- Multiple transducers
- On screen display of 8 languages
- Fast minimum feature to capture minimum thicknesses
- Splash-proof (IP54), high impact, compact housing

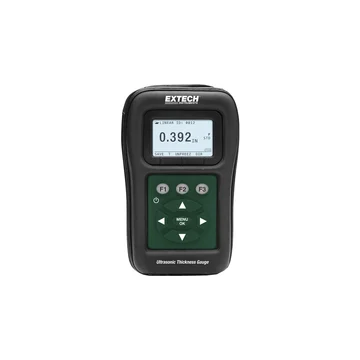

The Extech TKG150 Ultrasonic Thickness Gauge is designed in compact, handheld, rugged housing ideal for field use. The ultrasonic technology allows for non-destructive thickness measurements for primarily steel structures. The Echo to Echo function measures the metal thickness only. The differential mode displays the difference from the actual thickness measurement and a user entered reference value. The TKG150 also features velocity mode with displays acoustic sound speed. Applications for the Extech TKG150 include: Boiler tubes Pressure vessels Storage tanks Ship Hulls Containers Home oil tanks Pipes Steam lines Compressors Shafts Bridge pins Bond inspection
