Features
- Measures:
- Current, max load, voltage, mV/temp
- Type J, K, T, E, C, R, S, N thermocouple types
- ±(0.01% + 1 digit) or ±(0.05% + 1.8°F or 1°C) accuracy
- 24V Loop Power
- Zero adjustment, auto zero when power on and change mode
- Standard banana I/O ports
- Large battery bank for extended work cycle
- External power adapter for continuous work cycle

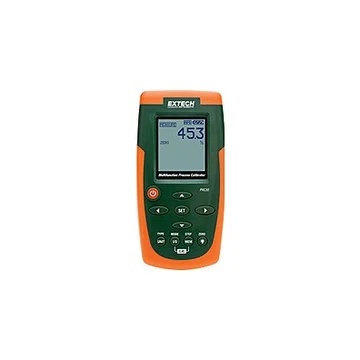

The Extech PRC30 Process Calibrator provides a high accuracy calibration function that simulates precision thermocouple
outputs for use in calibrating thermometers, transmitters, controllers or recorders. The palm sized unit has double molded
housing and a large dot-matrix backlit LCD display. The PRC30 has up to five user adjustable calibration presets and measures
DC process signals.
Applications for the Extech PRC30 Process Calibrator include:
Lab and Field Calibration and Verification Operations of Sensors, Thermocouple Probes, Controllers, Panel meters & Testing tools.
Temperature Control Process Troubleshooting
Process devices calibration and simulation: Transducers, Transmitters, Indicators, Controllers, and Recorders
Field test and service
Bench research and development
The Extech PRC30 Process Calibrator ships complete with:
Test leads
Alligator clips
Thermocouple calibration cable with subminiature connector
Universal calibration cable with subminiature terminal
100V-240V AC Universal Adaptor with 4 plugs
Six 1.5V AA batteries
Hard carrying case
