Features
- AC current: 400A
- DC current: 400A
- AC/DC voltage: 600V
- DC µA current: 4000µA
- Resistance: 40.000MΩ
- Capacitance: 10pF to 40,000µF
- Frequency: 40MHz
- Temperature (type-K): -58 to 1832°F
- Basic accuracy: ±1.5%
- True RMS measurements for accurate AC Voltage and Current measurements
- Dual type K thermocouple input with Differential Temperature function (T1, T2, T1-T2)
- Built-in non-contact Voltage detector with LED alert
- DC µA multimeter function for HVAC flame rod Current measurements
- Data Hold plus fast Peak Hold of current surges during motor startup
- Measures motor capacitors to 40,000µF
- 1.25" (32mm) jaw opening for conductors up to 500MCM
- Auto power off with audible alert and disable function
- Autoranging with manual override

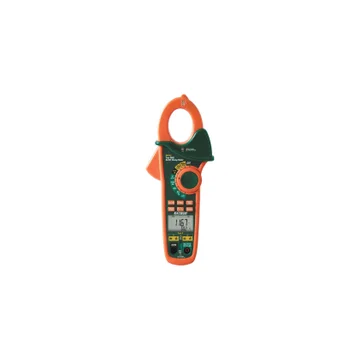

The Extech EX613 Dual Input Clamp Meter is a 400A clamp-on True RMS multimeter ideally suited for
residential electricians, HVAC professionals, and light industrial maintenance technicians. The EX613 is a
versatile instrument capable of accurate measurements of AC current, AC/DC voltage, resistance, capacitance, frequency
and temperature via dual type-k thermocouple input. The EX613 also features DC current measurement.
The Extech EX613 clamp meter is constructed of rugged double molded housing and features 1.25" jaws which are
large enough to accommodate conductors up to 500 MCM. Readings are displayed on a large LCD with a 40,000 count to offer
high resolution over wider ranges. Other features of the Extech EX613 include Data Hold and Peak Hold features
to allow capture of current surges during motor start-up and other electrical transients, DC µA multimeter function for
HVAC flame rod Current measurements, auto power off with audible alert and disable function, non-contact voltage
detector with LED alert, and autoranging with manual override.
