Features
- Remote vibration sensor with magnetic adapter on 39" cable
- Wide frequency range of 10Hz to 1kHz
- Resolution to 2 ft/s2, 0.02 in/s and 0.001 in
- RMS or Peak Value
- Manual/Auto store/recall up to 500 readings
- Data hold freezes the reading in the display
- Optional PC cable and software

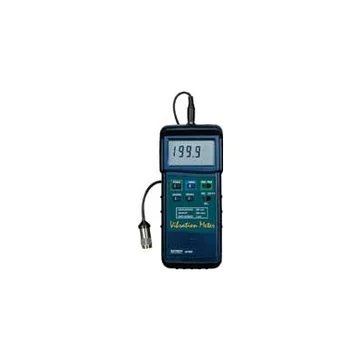

The heavy duty Extech 407860 vibration meter measures acceleration, velocity, and displacement. The Extech
407860 vibration meter features an optional PC interface and Windows® 95/98/NT/2000/XP compatible software
which allows captured readings to be downloaded to your PC for further analysis. Maximum and minimum values
can be stored for later recall.
The Extech 407860 vibration meter has the following ranges:
Acceleration: 656 ft/s2 (200 m/s2)
Velocity: 7.87 in/s (200 mm/s)
Displacement: 0.087 in (2 mm)
The Extech 407860 vibration meter features a remote vibration sensor with magnetic adapter on a 39" (1 m)
cable. The Extech 407860 offers a wide frequency range of 10Hz to 1kHz, resolution to 2 ft/s2 (0.5 m/s2),
0.02 in/s (0.5 mm/s), and 0.001 in (0.005 mm).
Other features of the Extech 407860 vibration meter include a basic accuracy of ±(5% + 2 digits), RMS or
peak value measurement modes, manual/auto store/recall up to 500 readings and auto shut-off. The Extech
407860 vibration meter operates on a 9V battery or optional AC adaptor.
Applications for the Extech 407860 Vibration Meter:
Motors, bearings
Fans
Pumps
Rotating machinery
Plant maintenance
The heavy duty Extech 407860 vibration meter ships complete with remote sensor, magnetic mount, 9V battery,
protective rubber holster with stand, and hard carrying case.
National Stock Numbers (NSN)
The following National Stock Numbers reference the Extech 407860 Vibration Meter:
NSN
NSN Item Name
Reference/Part Number
6625-01-569-9474
(6625015699474)
METER,SPECIAL SCALE
407860
