Features
- Accuracy: ± 5% FS
- Maximum Resolution: 0.1 Fc / 1 Lux
- Displays light level in terms of Fc or Lux over three ranges: 200, 2000, 5000 Fc / 2000, 20,000, 50,000 Lux
- Select fast (1 second) or slow (2 seconds) response time
- Analog output of 1mV per count for capturing readings to a recorder

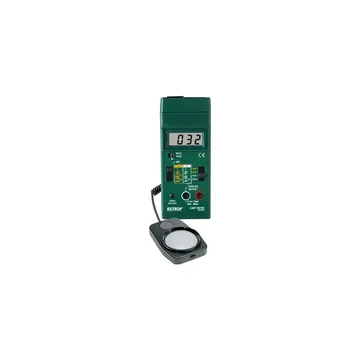

The Extech 401025 foot candle / lux meter can accurately display the light level over three selectable ranges
for each of two measurement units: foot candles (Fc) or Lux. The ranges of the Extech 401025 foot candle / lux
meter are from 0 to 200 Fc, 0 to 2000Fc, 0 to 5000 Fc, to 2000 Lux, 0 to 20,000 Lux or 0 to 50,000 Lux.
Resolution is as high as 0.1 Fc / 1 Lux while basic accuracy is ±5% of reading.
Other features of the Extech 401025 foot candle / lux meter include response times of 1 or 2 seconds and analog
output of 1 mV per count for capturing readings to a recorder.
The Extech 401025 foot candle / lux meter comes complete with 9V battery, light sensor, and protective cover with
47" (1.2m) cable, and built-in stand.
National Stock Numbers (NSN)
The following National Stock Numbers reference the Extech 401025 Foot Candle / Lux Meter:
NSN
NSN Item Name
Reference/Part Number
6695-01-469-6038
(6695014696038)
METER,ILLUMINATION INTENSITY
401025
