Features
- 1/16, 1/4, 1/8 panel size (DIN)
- 24V dc/ac, 85-264V ac
- <0.1% low thermal drift PV accuracy
- TC, PT100/PT1000 RTD, mV, mA, Zirconia inputs
- Digital comms
- BACNet
- EIA-485
- EtherNet/IP
- Modbus RTU
- Modbus TCP
- Optional ramp & soak profile control
- IP rating:
- Washdown: IP66, NEMA4x (Indoor Use)
- Standard: IP65, NEMA 12
- Certified to Achilles CRT Level 1 Cybersecurity

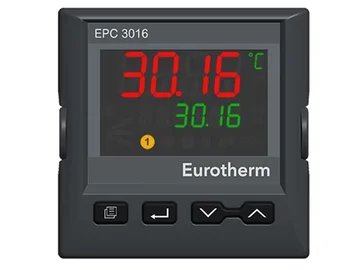

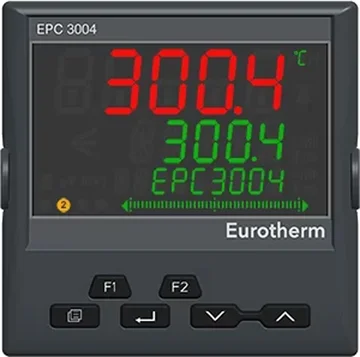

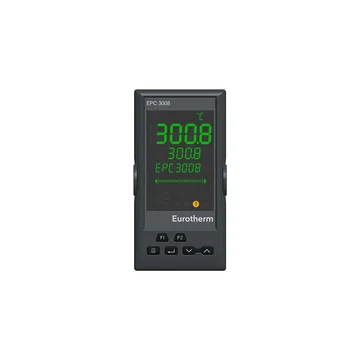

The Eurotherm EPC3000 Series temperature controller delivers fast reacting and repeatable control and has been enhanced to further reduce overshoot. Rapid rise to operating temperature and low oscillation helps improve yield. PID settings may be adjusted to suit specific process operating regions, helping deliver optimum performance.
A PC-based configuration app, Eurotherm iTools, may be downloaded free of charge for use with Ethernet or Serial Modbus, or with an optional USB connector. The USB connector powers the instrument for convenient desktop configuration. Diagnostic and performance metrics available online to help improve process throughput and help reduce downtime.
