Features
- Vibration Sensors include:
- EPH-V18: PHANTOM G2 Wireless Triaxial Vibration Sensor High Freq Range 10kHz 12'000 signals
- EPH-V10: EXPERT Wireless Triaxial Low Freq range 4kHz 100'000 signals
- EPH-V11: PHANTOM EXPERT Wireless Triaxial Vibration Sensor High Freq Range 10kHz 100'000 signals
- EPH-V15-ATX: PHANTOM ATEX Wireless Triaxial Vibration Sensor ATEX CLASS II, Low Freq Range 4kHz 12'000 signals
- EPH-V16-ATX: PHANTOM ATEX Wireless Triaxial Vibration Sensor ATEX CLASS II, High Freq Range 10kHz 12'000 signals
The Erbessd Reliability Phantom Sensors can be used as spare or replacement sensors. The triaxial vibration sensors are able to send 3 simultaneous FFT and Time waveform recordings at once. The signal from the Phantom sensors is encrypted which ensures the reliability of the information and the security of your data. Phantom ATEX Sensors have a Class II certification for explosive atmospheres consisting of substances in the form of gas and air particles.
The PHANTOM Vibration Sensors include:
EPH-V18: PHANTOM G2 Wireless Triaxial Vibration Sensor High Freq Range High Amplitude range 8-16-32 Gs (progr.) High Amplitude, Interchangeable battery, 10kHz 12'000 signals avg.
EPH-V10: PHANTOM EXPERT Wireless Triaxial Vibration Sensor Low Freq Range 4kHz Low Amplitude range 2-4-8 Gs (progr.) High sensitivity, Interchangeable battery, 100'000 signals avg.
EPH-V11: PHANTOM EXPERT Wireless Triaxial Vibration Sensor High Freq Range 10kHz High Amplitude range 8-16-32 Gs (progr.) High Amplitude, Interchangeable battery, 100'000 signals avg.

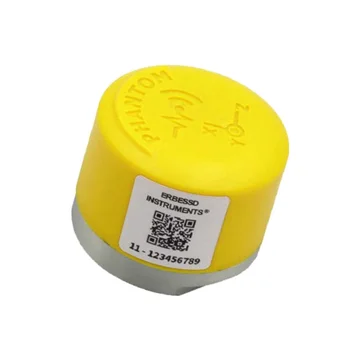

EPH-V15-ATX: PHANTOM ATEX Wireless Triaxial Vibration Sensor ATEX CLASS II, Low Freq Range 4kHz High Amplitude range 2-4-8 Gs (progr.) Low Amplitude, The battery is not interchangeable, 12'000 signals avg.
EPH-V16-ATX: PHANTOM ATEX Wireless Triaxial Vibration Sensor ATEX CLASS II, High Freq Range 10kHz High Amplitude range 8-16-32 Gs (progr.) High Amplitude, The battery is not interchangeable, 12'000 signals avg.
