Features
- Modules available:
- Discrete I/O Modules (Input/output)
- Analog I/O Modules (Input/output)
- RTD Modules
- Thermocouple Modules
- 4, 8 or 16 point density
- DIN rail mounting
- Indicator LEDs on the module and each channel
- Spring style technology for easy wiring

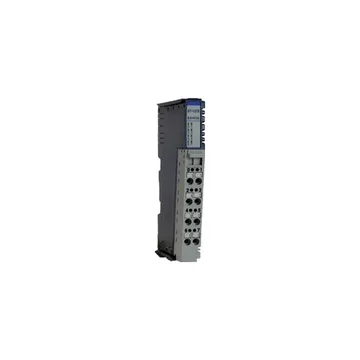

Emerson RSTi-UP I/O modules connect to and are powered by an RSTi-UP network adapter, up to 64 per adapter. They are compact and high-density modules, with up to 16 inline wire connections.
Digital Input Modules
The RSTi discrete input modules are available for a wide range of applications requiring DC voltages (5VDC, 24 VDC, 48 VDC) and AC voltages (110 VAC, 220 VAC). The input modules are available in 4, 8 or 16 point density to optimize panel space.
Digital Output Modules
The RSTi discrete output modules are available for a wide range of applications requiring DC voltages (5 VDC, 24 VDC, 48 VDC) and AC voltages (12 VAC, 125 VAC). The modules are available in 4, 8 or 16 point density to optimize panel space. Relay output modules are also available. The ST-2792 has an added feature of manual/automatic override.
Analog Input Modules
The RSTi analog input modules are available in a wide range of voltage and current signals. Analog input modules are available in 12 bit or 14 bit resolution.
Analog Output Modules
The RSTi analog output modules are available in a wide range of voltage and current signals. Specialty analog modules are also available for manual over-ride and 0 to 1 Amp analog out.
