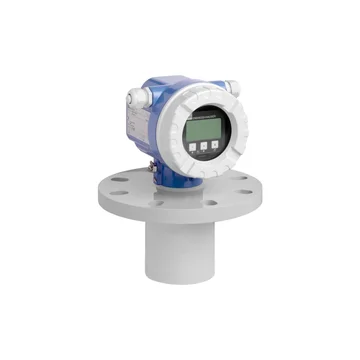

E+H Prosonic FMU44 Ultrasonic Sensor

Features

• Flange process connection
• -40 to 176°F(-40 to 80°C) temp range
• 10 to 36psi (0.7 to 2.5bar) pressure range
• Maximum measuring distance:
  • Liquids 66ft (20m)
  • Solids 33ft (10m)
• Blocking distance: Liquids and Solids 1.9ft (0.5m)
• International explosion protection certificates

The E+H Prosonic FMU44 Ultrasonic Sensor is suited for non-contact level measurement in fluids, pastes, coarse bulk material and flow measurement in open channels or at weirs. The two-wire or four-wire compact transmitter can be used in applications with storage tanks, agitators, on stockpiles and conveyor belts. The envelope curve can be shown on the on-site display for simple diagnosis. Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate.
