Features
- Wireless remote access via Bluetooth SmartBlue App
- DN15 to 50 (1/2 to 2in) size range
- Measurement of flow, temperature and conductivity
- Accuracy
- Flow: ±0.8% o.r. ± 0.1% o.f.s. (of full scale)
- Temperature: ±2.5 °C (±4.5 °F)
- 1.4in TFT color display with backlight
- High shock and vibration resistance
- Degree of protection: IP65/67
- Empty pipe detection
- Adapters are available as accessories
- Metric G thread on body, connection adapters & M12 cables sold separately
- IO-Link and various I/Os for all line-sizes
- NSF 61 approval

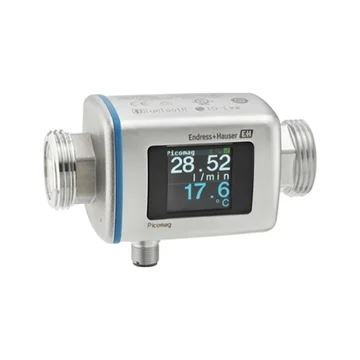

The E+H Picomag Electromagnetic Flow Meter is the economical magmeter for many applications in secondary circuits with conductive liquids in all industries. End customers, skid builders, equipment manufacturers and system integrators value the space-saving Picomag for its flexible installation capabilities. Additionally, its future-oriented, intuitive operation via SmartBlue app on every Bluetooth-enabled smartphone or tablet ensures fast, secure and simple commissioning.
