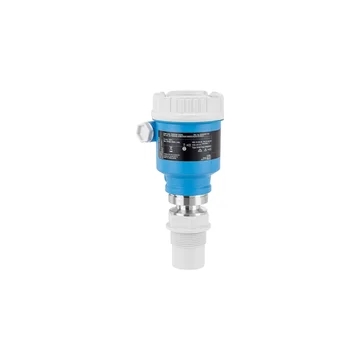

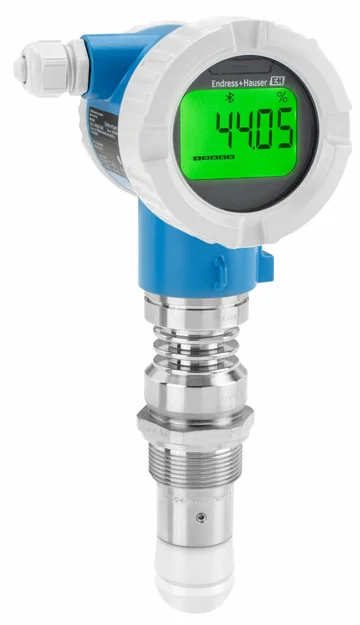

E+H Micropilot FMR66B Radar Sensor

Features

• ±3mm (0.12in) accuracy
• -4 to 392 °F (-20 to 200 °C) process temperature
• Pressure range of -14.5 to 43.5 psi or -14.5 to 232 psi, depending on components chosen
• 50m (164ft) maximum measurement range
• PVDF or PTFE drip-off antenna
• ~80GHz W-band
• SIL2 as per IEC 61508
• SIL3 for homogeneous redundancy
• Commission, operate, and troubleshoot with Bluetooth capability

The E+H Micropilot FMR66B radar sensor belongs to the new generation of 80 GHz radar sensors. It is suitable for continuous, non-contact level measurement in simple solid applications. The sensor is designed for free-field applications up to 50 meters and provides high beam focus for vessels with many internal fittings. The small beam angle is perfect for measurements in narrow silos. Wizards guide the user through commissioning, retesting and verification of the instrument and guarantee easy handling. Heartbeat Technology detects unwanted anomalies, such as buildup, for increased productivity.
