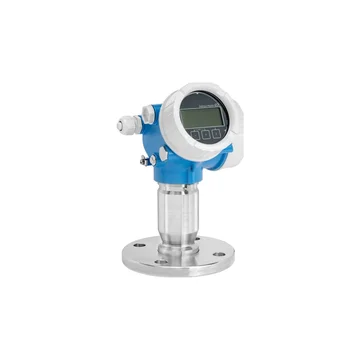

E+H Micropilot FMR62 Radar Level Transmitter

Features

• 80GHz level measurement
• Applications with hygiene requirements
• Heartbeat Technology
• HistoROM data management
• Multi-Echo Tracking evaluation
• PTFE-filled and flush-mounted horn antenna
• Thread or flange process connections
• -40 to 392°F (-40 to 200°C) temp range
• -14.5 to 362.6 psi (-1 to 25 bar) pressure range
• 262ft (80m) maximum measuring range
• ±0.04in (1mm) accuracy
• 80GHz W-band

The E+H Micropilot FMR62 Radar Level Transmitter is the first 80GHz radar developed according to the international functional safety directive IEC 61508. For applications in aggressive liquids, FMR62 offers extraordinary advantages with its completely PTFE-filled and flush-mounted antenna. The integrated PEEK antenna allows very small process connections. The FMR62 free space radar offers maximum reliability due to improved algorithms and small beam angle. It also possesses the smart sensor functionality Heartbeat Technology.
