Features
- Non-contact measurement
- HistoROM data management
- Thread or flange process connections
- -40 to 302°F (-40 to 150°C) temp range
- -14.5 to 580 psi (-1 to 40 bar) pressure range
- 66ft (20m) maximum measuring range
- ±6mm accuracy
- 6GHz C-band

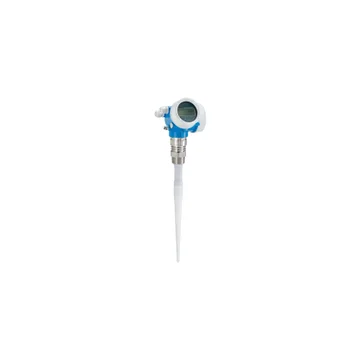

The E+H Micropilot FMR53 Level Transmitters are designed for simple level measurement applications in liquids. With
its slim rod antenna, FMR53 free space radar is particularly suited for small process connections. The PTFE coating
of the rod antenna and flange plating guarantee resistance also in aggressive media. The Micropilot FMR53 is used
for continuous, non-contact level measurement of liquids, pastes and slurries. The measurement is not affected by
changing media, temperature changes, gas blankets or vapors.
